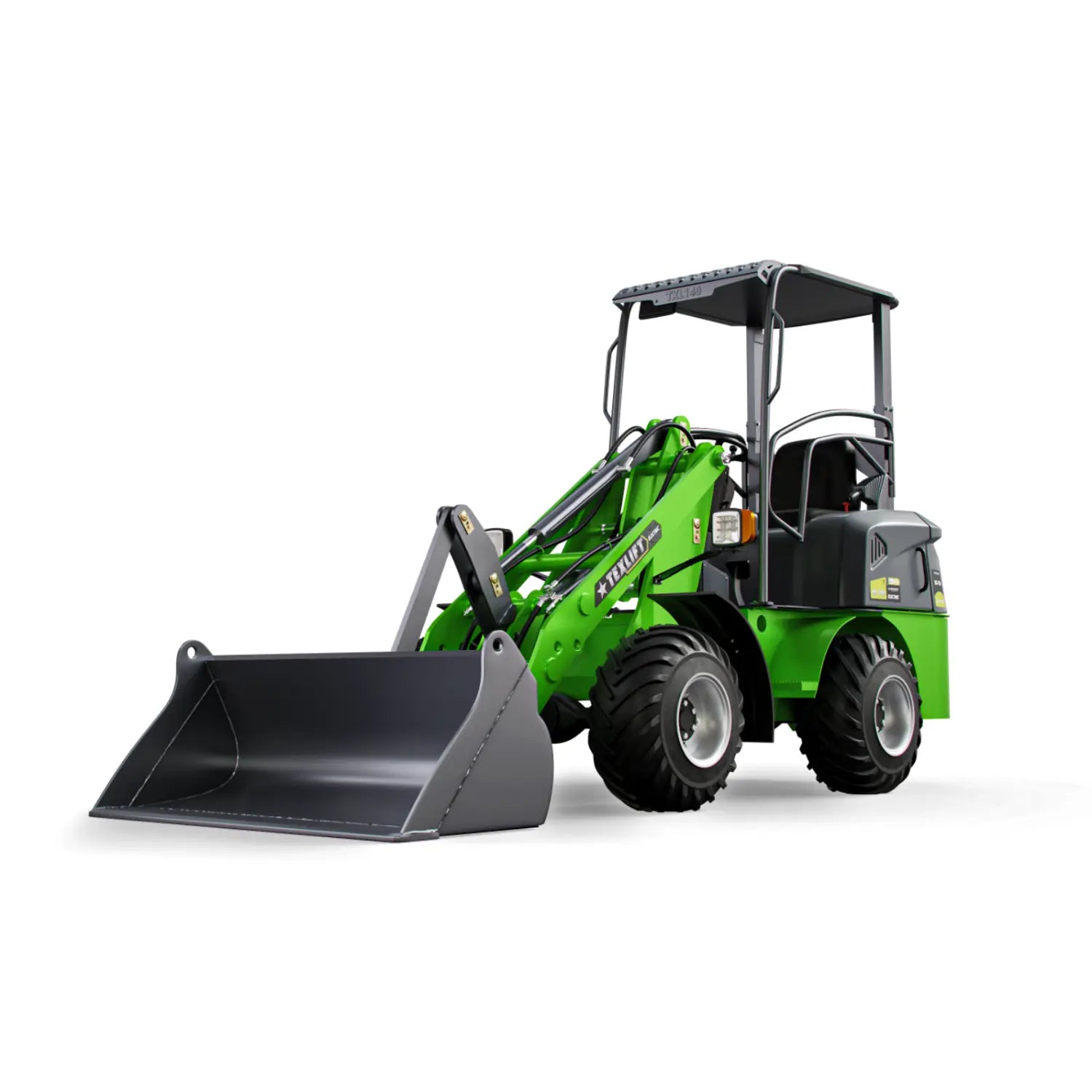

Electric Wheel Loader US-TXL140PRO S – 1,400 lb Capacity, 132″ Lift, Inverter Model
Shipping costs are calculated at checkout!
⚡ Electric Wheel Loader – US-TXL140PRO S
- Load Capacity: 1,400 lbs
- Maximum Lifting Height: 132″
- Dumping Height: 86″ at 36°
- Dumping Reach: 16″
- Turning Radius: 80″
- Drive Motor: 2 × 4.5 kW (9 kW total)
- Hydraulic Motor: 4.5 kW • 16 MPa
- Hydraulic System: Full hydraulic steering – 2,320 psi working pressure
- Battery: 73.6V / 240Ah Lithium-Ion (17.7 kWh)
- Working Duration: up to 8 hours
- Charging Time: ~5 hours
- Braking: Drum braking system with parking handbrake
- Ground Clearance: 8″
- Overall Dimensions (L × W × H): 151″ × 50″ × 89″
- Operating Weight: 4,500 lbs
- 🔌 Pure Sine Wave Inverter 110V / 3kW: Power tools or charge devices directly from the machine.
- ⚡ High-Performance Powertrain: 9 kW dual drive motors + 4.5 kW hydraulic motor deliver strong traction and smooth lifting.
- 🔋 Up to 8 Hours Runtime: Full workday operation with fast ~5h recharge time.
- 🏗️ Strong Hydraulic System: Smooth lifting and precise control under load.
- 🔇 Zero-Emission Operation: Quiet electric power for indoor and outdoor use.

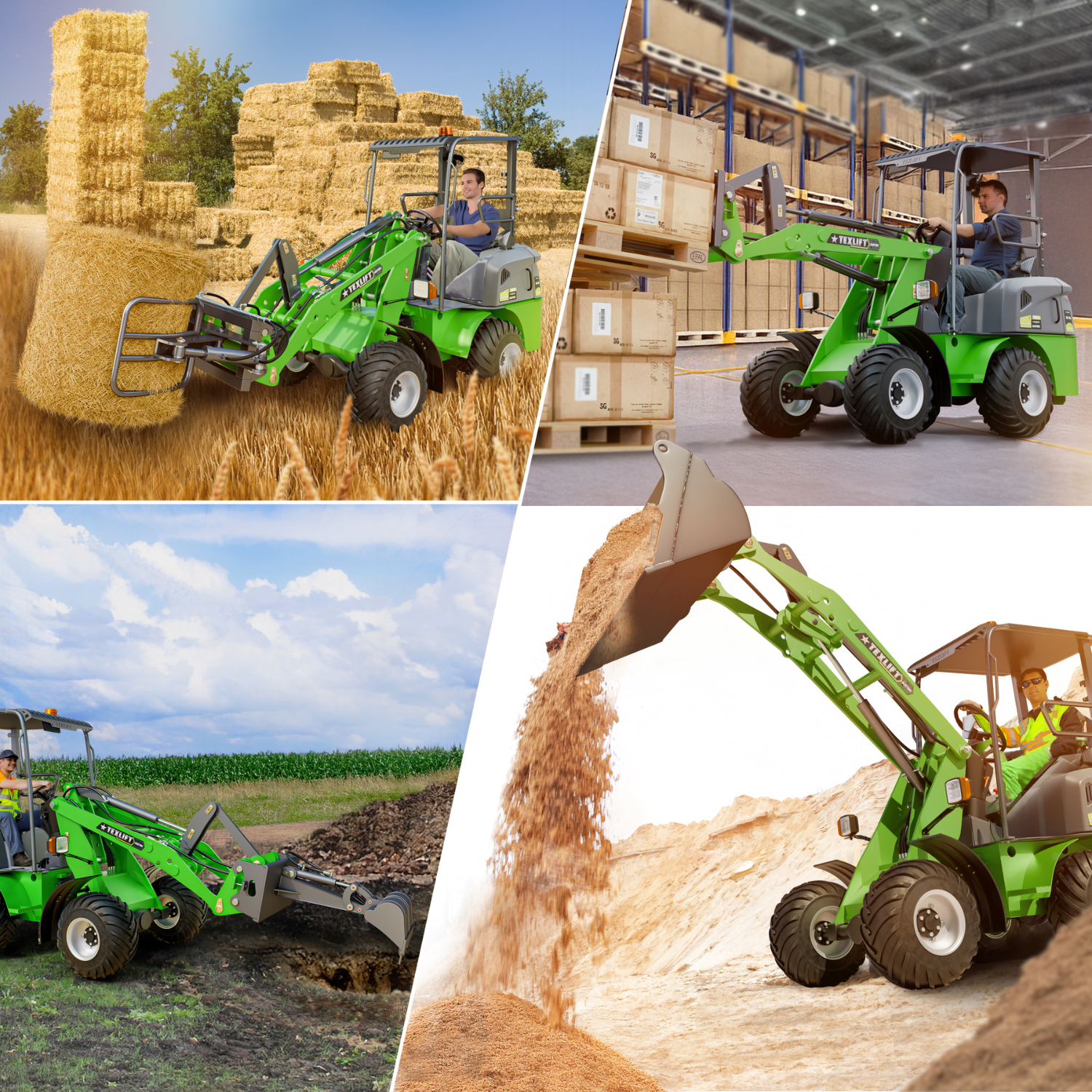

- 🧭 Compact & Maneuverable: Ideal for job sites, farms, and warehouses.
- 🔌 USB Charger Included: Built-in USB port.
- 📱 Phone Holder: Secure mount included.
- 🥤 Cup Holder: Convenient for operator comfort.
- 🛡️ Protective Operator Cover: Added comfort for outdoor work.
- 🚚 Nationwide U.S. Shipping Available
- ❌ No Sales Tax outside TX
-
📞 Talk to a Specialist Anytime: +1 (214) 468-4388
- 🎖️ Military Discount: Save 2%
-
💲 3% Wire-Transfer Discount:
Get 3% off your order when you pay by wire transfer.
Request 3% Wire Discount
BUILT-IN INVERTER POWER (PURE SINE WAVE)
The US-TXL140PRO S is equipped with a built-in inverter so you can power tools or charge devices on-site (AC outlets). Combined with electric joystick control and a clear electric display, it’s an efficient zero-emission solution for construction, farm, and industrial work.
Get to know the product
PRODUCT SPECIFICATIONS
The Texlift US-TXL140PRO S Electric Wheel Loader delivers powerful, zero-emission performance with a 1400 lb rated load, durable build, and smooth hydraulic control. This model also includes a built-in pure sine wave inverter for convenient on-site AC power—ideal for tools and charging needs.
1400 lbs
Heavy-duty lifting performance for demanding material handling.
4500 lbs
Stable, robust machine weight for confident loading and transport.
8.8 ft³
Efficient bucket volume for quick cycles and high productivity.
46 in
Wide bucket supports common aggregate and bulk material tasks.
85 in
Improved dump clearance for easier truck loading.
16 in
Optimized reach to place loads efficiently.
132 in
High lift height for stacking flexibility.
Low 6 mph / High 12.5 mph
Two-speed travel for control and efficiency.
80 in
Compact turning radius improves maneuverability.
±45°
Strong steering angle for tight jobsite navigation.

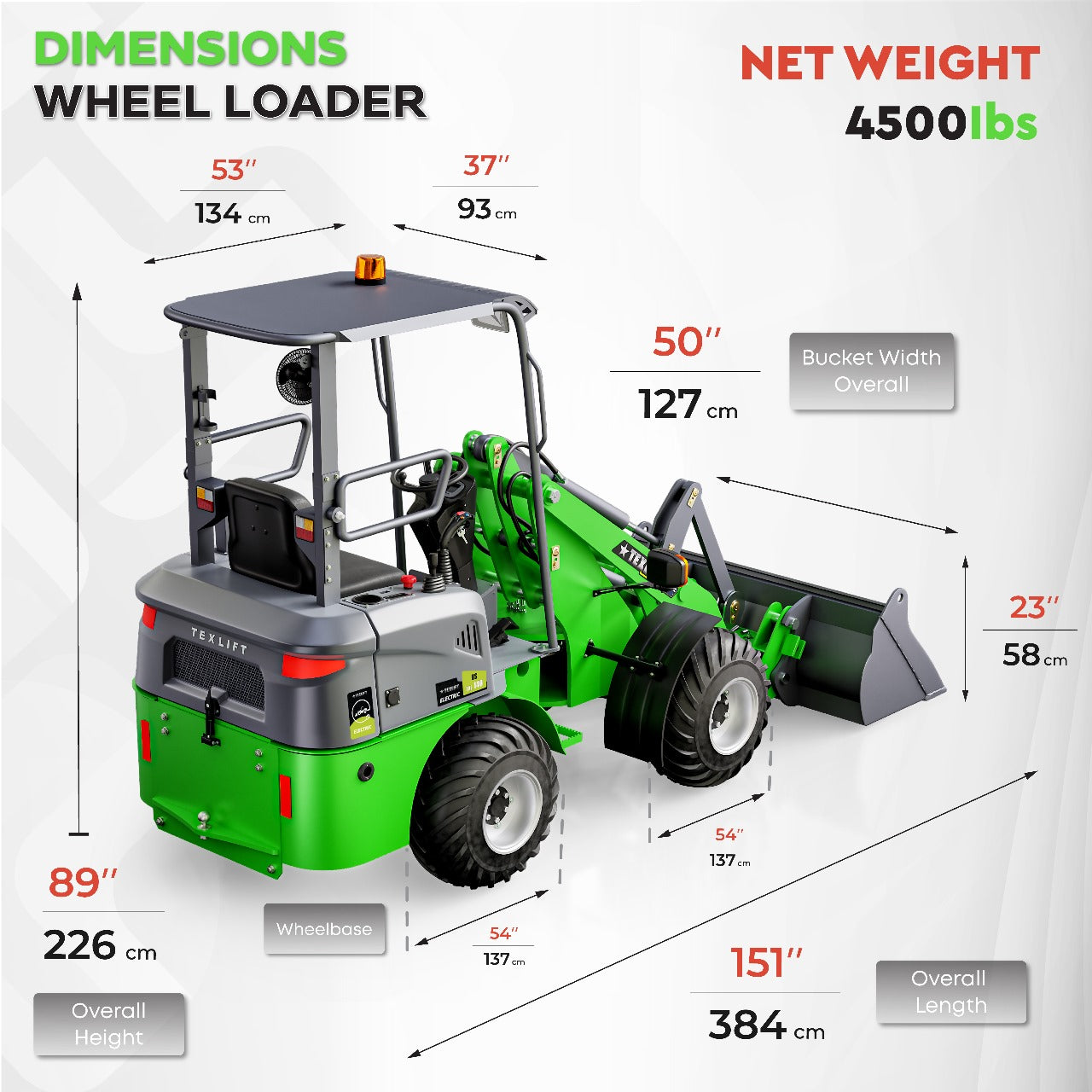

151 × 50 × 89 in
Balanced size for versatile environments.
55 in
Wheelbase improves stability under load.
37 in
Track width supports confident handling.
8 in
Ground clearance supports uneven terrain.
Lithium-Ion
Lithium battery ensures long life and low maintenance.
17.7 kWh
High-capacity battery supports extended operation.
Drive: 2 × 4.5 kW (9 kW total) + Hydraulic: 4.5 kW
Dual drive motors (9 kW total) provide strong traction, while a dedicated 4.5 kW hydraulic motor ensures smooth lifting and precise control.
Charge: 5h • Runtime: up to 8h
Up to 8 hours working time with fast 5-hour charging for minimal downtime.
16 MPa
Stable hydraulic pressure ensures consistent performance.

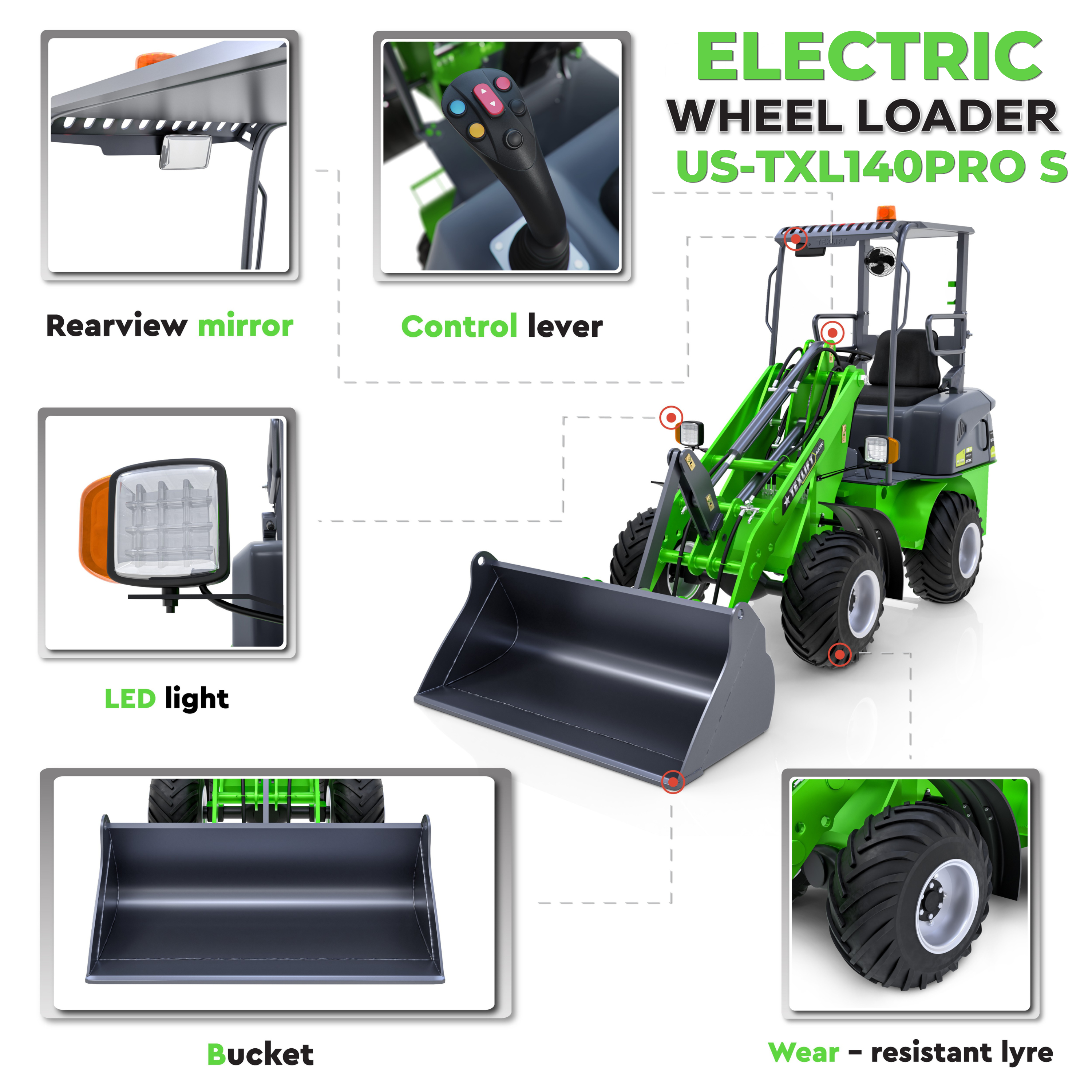

Inverter (pure sine wave), quick hitch, electric joystick, warning lights, electric display
Advanced features improve efficiency and operator comfort.
WORK SMARTER, LOAD FASTER
Upgrade productivity with the Texlift US-TXL140PRO S—powerful electric performance plus built-in inverter power for jobsite convenience.
ON-SITE INVERTER POWER
Built-in pure sine wave inverter with AC outlets helps power tools or charge devices directly from the loader—perfect for jobsite convenience.
ZERO EMISSIONS, LOWER COSTS
Electric drive means no fuel, less maintenance, quiet operation, and cleaner work—great for indoor yards, farms, and urban sites.
EASY JOYSTICK CONTROL
Standard electric joystick and clear electric display provide smooth, precise control for lifting, dumping, and maneuvering.
Support Center
FAQs
Quick answers about the Texlift US-TXL140PRO S Electric Wheel Loader—inverter feature, battery, charging, and capacity.
What is special about the “S” model? +
The US-TXL140PRO S includes a built-in pure sine wave inverter (AC outlets) for powering tools or charging devices on-site—plus standard quick hitch, electric joystick, warning lights, and electric display.
How long does the battery last on a full charge? +
Working duration is rated at about 6 hours, depending on terrain, load weight, and operating habits.
How long does it take to fully charge? +
Typical full charging time is about 5 hours.
What is the rated load capacity? +
The rated load is 1400 lbs. Always follow safe load distribution and operating guidelines.
