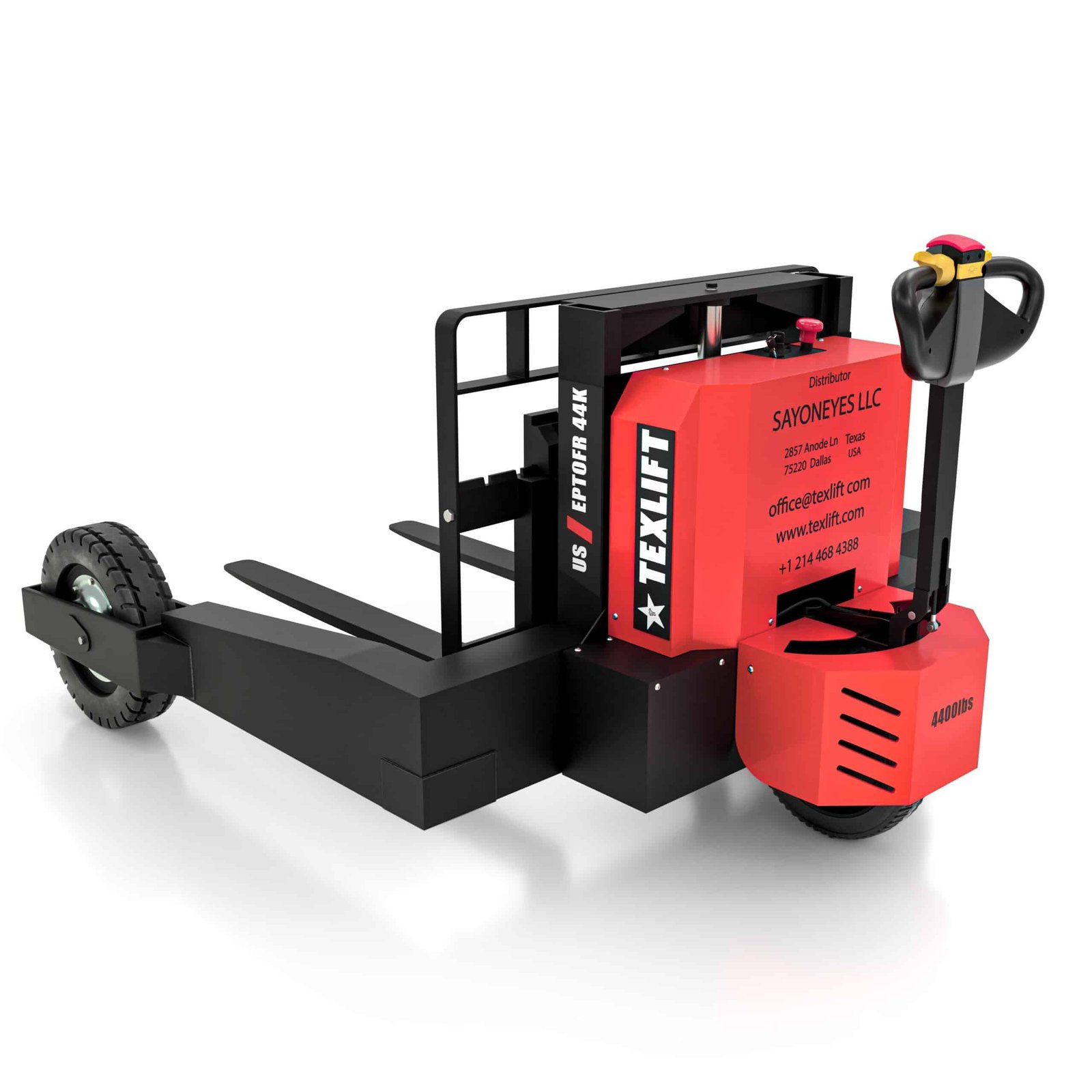

The 4400 lb Rough Terrain Electric Pallet Jack US-EPTOFR44K is a heavy-duty full-electric material-handling solution designed for transporting compatible palletized loads across firm outdoor and uneven working surfaces. With a 4,400 lb rated load capacity, 12 in maximum fork height, 2 in lowered fork height, adjustable 10–37 in fork spread, and rugged solid off-road tires, it provides increased capability for demanding commercial operations where conventional low-clearance warehouse pallet jacks may not be suitable.
Powered by a 48V / 45Ah maintenance-free gel lead-acid battery system, the Texlift US-EPTOFR44K provides powered electric travel and powered lifting to reduce manual material-handling effort. Heavy-duty 48 × 5 in forks, approximately 5–6 hours of stated runtime, electromagnetic braking, a compact 54 in turning radius, and puncture-resistant solid tires make this rough terrain electric pallet jack a practical solution for construction yards, farms, agricultural operations, landscaping businesses, nurseries, material yards, outdoor storage areas, and warehouse-to-yard material handling.
The US-EPTOFR44K provides a maximum rated load capacity of 4,400 lbs at a 20 in load center for transporting, lifting, and positioning compatible palletized loads.
Its heavy-duty capacity makes this rough terrain electric pallet jack suitable for construction materials, agricultural supplies, landscaping products, building materials, palletized inventory, packaged goods, equipment supplies, and other compatible commercial loads.
Always operate within the rated capacity and ensure loads are properly positioned, stable, and adequately supported before lifting or transportation.
Powered electric travel and electric lifting reduce the physical effort required for repetitive pallet handling compared with manually propelled and manually lifted pallet jacks.
Electric travel assists the operator when transporting heavier palletized loads, while powered lifting eliminates repetitive manual hydraulic pumping during normal operation.
This full-electric configuration provides a practical solution for commercial operations requiring frequent pallet movement throughout demanding working environments.
The US-EPTOFR44K uses a rechargeable 48V / 45Ah maintenance-free gel lead-acid battery system to power electric travel and lifting.
The battery provides approximately 2.16 kWh of nominal energy capacity based on its 48V / 45Ah rating.
Gel batteries are a sealed type of lead-acid battery, providing rechargeable electric power with reduced routine maintenance compared with conventional flooded lead-acid batteries.
The battery system provides approximately 5–6 hours of stated operating time per charge under typical working conditions.
Actual runtime varies depending on load weight, terrain, travel distance, lifting frequency, slope, surface resistance, battery condition, temperature, battery age, and operating intensity.
Frequent transportation of heavier loads or operation across more demanding surfaces may reduce operating time per charge.
The US-EPTOFR44K uses a compatible 48V / 5A charging system designed for its 48V gel lead-acid battery.
Stated recharge time is approximately 5–6 hours under normal charging conditions.
Actual charging time can vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging environment.
The forks raise to approximately 12 in from the ground, providing increased lifting clearance compared with conventional low-profile warehouse pallet jacks.
The additional height supports pallet transportation and positioning across compatible outdoor and uneven commercial working surfaces.
The US-EPTOFR44K is designed for pallet transportation and positioning and should not be used as a high-lift pallet stacker.
The heavy-duty forks lower to approximately 2 in from the ground for entry into compatible pallets and loads.
Pallet dimensions, entry openings, bottom-board configurations, fork clearance, and load arrangements vary. Customers should verify compatibility with their specific pallets before ordering or operating the equipment.
The fork spread can be adjusted from approximately 10 to 37 in to accommodate different compatible pallet widths and load configurations.
This adjustable configuration provides greater flexibility than conventional fixed-width pallet jacks and allows operators to position the forks according to the requirements of compatible loads.
Always verify fork positioning, pallet compatibility, load stability, and weight distribution before lifting or transporting a load.
The US-EPTOFR44K features heavy-duty forks measuring approximately 48 in long × 5 in wide.
The 48 in fork length provides practical support for compatible palletized materials, while the heavy-duty 5 in fork width contributes to a rugged load-handling configuration for demanding commercial applications.
Because pallet dimensions and entry configurations vary, customers should verify pallet compatibility before ordering.
An approximately 54 in turning radius provides practical maneuverability for a heavy-duty rough-terrain pallet jack.
The compact turning capability helps operators maneuver compatible loads throughout outdoor storage areas, construction yards, farms, material yards, loading zones, landscaping facilities, and other commercial working environments.
Always verify available turning space and clearance around buildings, equipment, vehicles, stored materials, and other obstacles.
Rated gradeability is approximately 6% under load and 8% without load under suitable operating conditions.
Gradeability describes the machine’s rated incline capability and does not mean that the pallet jack can safely operate on every slope or uneven surface.
Surface condition, traction, load position, load stability, battery condition, slope, and operating environment must always be considered before operating on an incline.
The US-EPTOFR44K uses an electromagnetic braking system to support controlled stopping during travel and pallet positioning.
The braking system works with the powered electric drive to provide controlled walk-behind operation when the equipment is operated correctly and within its rated capacity and operating limitations.
Large puncture-resistant solid off-road tires provide a durable configuration for demanding outdoor commercial material handling.
The US-EPTOFR44K uses approximately 16 × 4 in front tires and 12 × 3 in rear tires, supporting mobility across compatible firm and uneven working surfaces.
Solid tire construction eliminates routine air-pressure maintenance and reduces the risk of downtime associated with pneumatic tire punctures.
The US-EPTOFR44K is specifically configured for pallet handling beyond conventional smooth warehouse floors.
Its rugged chassis, large solid off-road tires, adjustable heavy-duty forks, 4,400 lb rated capacity, and full-electric operation provide improved mobility for compatible outdoor and uneven working environments.
Suitable surfaces may include compacted gravel, firm dirt, firm grass, rough concrete, asphalt, pavement, construction yards, farm surfaces, landscaping areas, material yards, and other firm and adequately supported working surfaces.
The US-EPTOFR44K uses a rugged chassis designed for demanding commercial material-handling applications.
An approximately 1,320 lb machine weight, 50 in wheelbase, wide stance, large solid tires, and heavy-duty fork structure provide a substantial platform for rough-terrain pallet transportation.
The machine’s dimensions and operating weight should always be considered when evaluating ramps, trailers, transport equipment, floors, loading areas, and other working environments.
The US-EPTOFR44K measures approximately 71 in long, 63 in wide, and 45 in high, with an approximately 50 in wheelbase and 54 in turning radius.
These dimensions provide a stable platform while maintaining practical maneuverability for transporting compatible palletized loads throughout suitable commercial working environments.
Operators should verify available clearance and maneuvering space before operating around buildings, vehicles, equipment, stored materials, or other obstacles.
Unlike conventional warehouse pallet jacks designed primarily for smooth concrete floors, the US-EPTOFR44K is configured for compatible outdoor and uneven working surfaces.
Its rugged construction and solid off-road tires provide improved mobility in construction yards, agricultural operations, landscaping facilities, nurseries, material yards, outdoor warehouses, loading areas, and building-supply operations.
Surface firmness, slope, traction, load stability, ground support, and working conditions must always be evaluated before operation.
The full-electric power system produces no tailpipe exhaust emissions during machine operation.
This makes the US-EPTOFR44K a practical electric alternative for applicable commercial operations where battery-powered material-handling equipment is preferred.
Appropriate battery charging, ventilation, workplace procedures, and equipment safety requirements should always be followed.
The US-EPTOFR44K is best suited for construction sites and yards, farms, agricultural facilities, landscaping operations, nurseries, building-supply operations, material yards, outdoor storage areas, warehouse yards, loading areas, and other commercial environments with firm and adequately supported working surfaces.
Its combination of 4,400 lb capacity, 12 in maximum fork height, 2 in lowered fork height, adjustable 10–37 in fork spread, 48 in heavy-duty forks, solid tires, and full-electric operation provides a specialized solution for demanding commercial pallet handling.
Typical applications include construction-material movement, agricultural supply handling, landscaping-material transportation, building-supply operations, nursery material handling, outdoor pallet staging, warehouse-to-yard pallet movement, farm supply handling, loading-area operations, material-yard transportation, and positioning compatible palletized loads weighing up to 4,400 lbs.
The machine is particularly useful when palletized materials must be transported across firm outdoor surfaces that are less uniform than conventional warehouse flooring.
The US-EPTOFR44K uses a 48V / 45Ah maintenance-free gel lead-acid battery system with approximately 2.16 kWh of nominal energy capacity to power electric travel and lifting.
A compatible 48V / 5A charger provides convenient recharging. Stated operating time is approximately 5–6 hours per charge with approximately 5–6 hours of charging time under normal conditions.
Actual battery performance and charging time vary depending on load, terrain, travel distance, lifting frequency, slope, temperature, battery condition, battery age, remaining charge level, and working environment.
Follow the recommended charging and storage procedures. Avoid leaving the battery deeply discharged for extended periods, recharge the battery appropriately after use, and maintain a suitable state of charge during longer storage periods.
The US-EPTOFR44K includes a 12-month warranty covering eligible manufacturing defects under normal intended use, subject to applicable Texlift warranty terms and conditions.
Texlift provides technical assistance, troubleshooting guidance, and replacement-parts support for the battery system, charger, electric drive, powered lifting system, electromagnetic braking system, controls, adjustable forks, wheels, tires, and other service components.
Normal wear, wheels and other consumable items, misuse, overloading, accidents, improper charging, inadequate maintenance, unauthorized modifications or repairs, and damage resulting from operation on unsuitable terrain are not covered.
The US-EPTOFR44K is a rough terrain electric pallet jack designed for demanding commercial material handling, but it is not an all-terrain vehicle.
It is intended for firm and adequately supported surfaces such as compacted gravel, firm dirt, firm grass, pavement, concrete, asphalt, and similar uneven working areas.
Do not operate the machine in deep mud, deep loose sand, flooded or waterlogged areas, extremely soft ground, severe terrain, unstable surfaces, or other conditions where adequate machine support, traction, steering control, or load stability cannot be maintained.
Always evaluate surface firmness, slope, traction, available clearance, load stability, and the working environment before operation
Tell us your application, required capacity, lift height, working environment, and delivery location. Our team can help you select the right machine for your operation.
Review the key dimensions, performance data, power information, fitment details, and product configuration.
| Specification | Value | Description |
|---|---|---|
| Model | US-EPTOFR44K | Heavy-duty full-electric rough-terrain pallet jack designed for outdoor and demanding commercial material handling |
| Load Capacity | 4,400 lbs | Maximum rated load capacity for transporting, lifting, and positioning compatible palletized loads |
| Load Center | 20 in | Rated load-center distance used for the 4,400 lb capacity specification |
| Fork Length | 48 in | Heavy-duty fork length designed for handling compatible pallets and palletized loads |
| Fork Width | 5 in | Approximate width of each individual heavy-duty fork |
| Fork Spread | 10–37 in | Adjustable fork spread provides flexibility for different compatible pallet widths and load configurations |
| Fork Position | Adjustable | Fork spacing can be adjusted to accommodate compatible pallets and load configurations |
| Lowered Height | 2 in | Minimum lowered fork height for entering compatible pallets and loads |
| Maximum Fork Height | 12 in | Maximum raised fork height for pallet transportation and positioning |
| Turning Radius | 54 in | Turning radius supports maneuverability across compatible outdoor yards and commercial working areas |
| Travel Speed | 2.8 / 3.4 mph | Approximate travel speed under loaded / unloaded operating conditions |
| Gradeability | 6% / 8% | Approximate gradeability under load / without load under suitable operating conditions |
| Power Source | Full Electric | Powered electric travel and electric lifting reduce manual material-handling effort |
| Battery Type | Maintenance-Free Gel Lead-Acid | Sealed rechargeable gel lead-acid battery technology provides power with reduced routine maintenance |
| Battery | 48V / 45Ah Gel Lead-Acid | Rechargeable battery system supplying power to electric travel and lifting |
| Battery Voltage | 48V | Rated electrical system voltage |
| Battery Capacity | 45Ah | Rated battery capacity for powered travel and lifting |
| Battery Energy | Approx. 2.16 kWh | Nominal battery energy calculated from 48V × 45Ah |
| Charger | 48V / 5A | Dedicated charging system matched to the 48V gel lead-acid battery system |
| Runtime | Approx. 5–6 Hours | Stated operating time per charge; actual runtime varies with load, terrain, travel distance, lifting frequency, slope, temperature, battery condition, and operating intensity |
| Charging Time | Approx. 5–6 Hours | Typical recharge time under normal charging conditions |
| Brake Type | Electromagnetic | Electromagnetic braking system provides controlled stopping during travel and load positioning |
| Front Tire Size | 16 × 4 in | Large solid front tires designed for demanding outdoor material handling |
| Rear Tire Size | 12 × 3 in | Heavy-duty solid rear tires support maneuverability across compatible rough working surfaces |
| Tire Type | Solid Off-Road | Puncture-resistant solid tires designed for demanding outdoor material handling |
| Wheelbase | 50 in | Wheelbase provides stability while maintaining practical maneuverability |
| Overall Length | 71 in | Approximate total machine length |
| Overall Width | 63 in | Approximate total machine width |
| Overall Height | 45 in | Approximate total machine height |
| Machine Weight | 1,320 lbs | Approximate operating weight of the pallet jack |
| Operation Type | Walk-Behind Full Electric | Pedestrian-operated rough-terrain pallet jack with powered travel and electric lifting |
| Recommended Surface | Firm & Adequately Supported Rough Terrain | Suitable for compatible compacted gravel, firm dirt, firm grass, pavement, concrete, asphalt, and similar adequately supported surfaces |
| Operating Environment | Outdoor / Commercial Rough Terrain | Designed for construction yards, farms, agricultural facilities, landscaping operations, nurseries, material yards, outdoor storage areas, warehouse yards, and similar commercial environments |
| Not Recommended For | Deep Mud, Loose Sand, Flooded or Unstable Ground | Not designed for surfaces where adequate machine support, traction, steering control, or load stability cannot be maintained |
| Best Use | Heavy-Duty Rough-Terrain Pallet Transport | Designed for transporting, lifting, and positioning heavier compatible palletized materials across suitable outdoor and uneven working areas |
| Typical Applications | Construction, Agriculture, Landscaping, Material Yards, Farms & Outdoor Warehouses | Suitable for demanding commercial outdoor pallet-handling operations |
| Warranty | 12-Month Warranty | Warranty coverage for eligible manufacturing defects subject to applicable Texlift warranty terms and conditions |
Find answers to common questions about this product, including operation, performance, setup, charging, maintenance, shipping, and ownership.
The US-EPTOFR44K has a maximum rated load capacity of 4,400 lbs at a 20 in load center, making it suitable for transporting, lifting, and positioning heavier compatible palletized materials in demanding commercial environments.
Yes. The US-EPTOFR44K provides powered electric travel and electric lifting, reducing manual effort during repetitive pallet transportation and positioning.
The US-EPTOFR44K has a rated 20 in load center used for its 4,400 lb capacity specification.
The US-EPTOFR44K features heavy-duty forks measuring approximately 48 in long × 5 in wide.
Yes. The fork spread can be adjusted from approximately 10 to 37 in to accommodate different compatible pallet widths and load configurations.
The forks lower to approximately 2 in from the ground for entry into compatible pallets and loads.
The forks raise to approximately 12 in from the ground for pallet transportation and positioning.
No. Pallet dimensions, entry openings, bottom-board configurations, and load arrangements vary. Customers should verify compatibility with the 48 in fork length, 5 in fork width, 2 in lowered height, and adjustable 10–37 in fork spread.
The US-EPTOFR44K uses a rechargeable 48V / 45Ah maintenance-free gel lead-acid battery with approximately 2.16 kWh of nominal battery energy.
No. The US-EPTOFR44K uses a maintenance-free gel lead-acid battery rather than a lithium-ion battery.
Stated operating time is approximately 5–6 hours per charge. Actual runtime varies depending on load weight, terrain, travel distance, lifting frequency, slope, temperature, battery condition, and operating intensity.
The pallet jack uses a 48V / 5A charger matched to its 48V gel lead-acid battery system.
Typical stated charging time is approximately 5–6 hours under normal charging conditions. Actual charging time can vary depending on remaining battery charge, battery condition, temperature, charger performance, and charging environment.
The machine uses puncture-resistant solid off-road tires designed for demanding outdoor commercial material handling.
The front tires measure approximately 16 × 4 in and the rear tires measure approximately 12 × 3 in.
The US-EPTOFR44K has an approximately 54 in turning radius, providing practical maneuverability in compatible outdoor yards and commercial working areas.
Rated gradeability is approximately 6% under load and 8% without load under suitable operating conditions. Surface condition, traction, load stability, and operating conditions should always be considered before traveling on an incline.
The pallet jack uses an electromagnetic braking system designed to provide controlled stopping during travel and load positioning.
The US-EPTOFR44K has an approximately 50 in wheelbase, providing stability while maintaining practical maneuverability.
The US-EPTOFR44K measures approximately 71 in long, 63 in wide, and 45 in high.
The US-EPTOFR44K has an approximate operating weight of 1,320 lbs.
Yes. The pallet jack is designed for compatible firm and adequately supported surfaces such as compacted gravel. Deep, loose, unstable, or poorly supported gravel should be avoided.
Yes. It can operate on compatible firm and adequately supported dirt surfaces. Extremely soft, muddy, waterlogged, or unstable ground should be avoided.
It can operate on firm and adequately supported grass surfaces when sufficient traction, machine support, and load stability can be maintained. Soft, wet, muddy, or unstable grass surfaces should be avoided.
Deep mud, loose sand, flooded areas, and unstable ground are not recommended because adequate traction, machine support, steering control, and load stability may not be maintained.
No. It is a rough-terrain material-handling machine intended for compatible firm and adequately supported outdoor surfaces. It is not designed for severe terrain or every possible outdoor surface.
It is well suited for construction yards, farms, agricultural operations, landscaping businesses, nurseries, material yards, outdoor storage areas, warehouse yards, loading areas, and other commercial environments with firm and adequately supported surfaces.
The US-EPTOFR44K includes a 12-month warranty covering eligible manufacturing defects, subject to applicable Texlift warranty terms and conditions.
Contact our equipment team with your application, required capacity, lift height, working environment, or product question and we can help.
Compare the most important specifications, pricing, and availability across similar models to find the best fit for your operation.
Explore the environments and operations where this equipment delivers reliable performance, productivity, and efficient material handling.
Transport heavier compatible palletized construction materials, building supplies, components, packaged products, and equipment across firm and adequately supported construction surfaces.
Move palletized feed, seed, fertilizer, agricultural supplies, packaged products, equipment components, and other compatible loads throughout firm farm yards and agricultural working areas.
Transport palletized landscaping materials, soil products, hardscape supplies, packaged goods, tools, and other compatible loads across firm dirt, compacted gravel, pavement, and adequately supported outdoor surfaces.
Move palletized plants, soil products, landscaping supplies, packaged materials, and inventory throughout suitable nursery yards, garden centers, storage areas, and loading zones.
Transport heavier palletized building materials and commercial supplies throughout suitable outdoor storage yards, staging areas, receiving zones, and loading areas.
Move compatible palletized materials between storage locations, staging areas, loading zones, work areas, and other locations across firm and adequately supported yard surfaces.
Transport palletized inventory and commercial materials throughout outdoor storage environments where a rugged chassis and solid off-road tires provide improved mobility compared with conventional warehouse pallet jacks.
Move compatible palletized loads between warehouse areas and suitable outdoor loading, staging, storage, receiving, and material-handling locations.
Handle heavier palletized loads across firm, compacted, and adequately supported gravel surfaces where sufficient traction, steering control, and load stability can be maintained.
Transport compatible palletized loads across firm and adequately supported dirt surfaces while avoiding deep mud, waterlogged ground, severe ruts, and unstable areas.
Operate across firm and adequately supported grass surfaces when sufficient traction and ground support are available; soft, wet, muddy, or unstable grass should be avoided.
Move palletized materials across rough concrete, asphalt, pavement, and similar firm commercial surfaces where a rough-terrain pallet jack configuration is beneficial.
Transport and position compatible palletized loads throughout outdoor loading zones, staging areas, receiving areas, and commercial material-handling locations.
Use the adjustable 10–37 in fork spread to accommodate different compatible pallet widths and load configurations for specialized commercial material-handling applications.
Heavy-duty 48 × 5 in forks provide practical support for compatible palletized loads requiring longer and wider fork construction.
Transport, lift, and position compatible palletized loads weighing up to 4,400 lbs at the rated 20 in load center across suitable firm outdoor and uneven working surfaces.
Raise compatible palletized loads to approximately 12 in for transportation and positioning where additional fork lift height is beneficial.
Ideal for businesses requiring powered transportation of heavier palletized materials beyond conventional smooth warehouse floors while operating on firm and adequately supported outdoor surfaces.
Review warranty coverage, included equipment, technical support, maintenance guidance, parts assistance, and important ownership information for this product.
The US-EPTOFR44K includes a 12-month warranty covering eligible manufacturing defects under normal intended use, subject to applicable Texlift warranty terms and conditions.
Texlift technical assistance is available for product operation, troubleshooting, powered travel, electric lifting, controls, braking, charging, routine maintenance, and general equipment questions.
Assistance is available for the 48V / 45Ah maintenance-free gel lead-acid battery system, including charging guidance, battery inspection, storage recommendations, electrical connections, performance troubleshooting, and compatible replacement-battery support.
Technical assistance is available for the compatible 48V / 5A charger, charging procedures, charger connections, battery charging performance, and general charging-system troubleshooting.
Technical assistance is available for the powered electric travel system, electrical components, travel controls, and troubleshooting related to machine movement and drive performance.
Support is available for the powered lifting system, hydraulic components, lift controls, and troubleshooting related to raising and lowering compatible palletized loads.
Assistance is available for the electromagnetic braking system and troubleshooting related to controlled stopping and normal travel operation.
Technical guidance is available for the adjustable 10–37 in fork spread, fork positioning, inspection, and compatibility with different pallet and load configurations.
Assistance is available for confirming compatibility with the 48 in fork length, 5 in fork width, 2 in lowered height, adjustable 10–37 in fork spread, and specific pallet dimensions or entry configurations.
Technical guidance is available regarding recommended operating surfaces, solid off-road tires, gradeability, terrain limitations, load stability, and appropriate rough-terrain operating conditions.
Texlift provides assistance identifying compatible replacement parts for electrical components, controls, battery components, charger components, hydraulic components, forks, wheels, drive-system components, lift-system components, braking components, and other service parts.
Regularly inspect the forks, fork-adjustment system, solid tires, wheels, hydraulic system, controls, electromagnetic brake, battery, charger, electrical connections, drive system, lifting system, frame, and safety components to help maintain dependable operation.
Follow the recommended charging and storage procedures for the 48V / 45Ah gel lead-acid battery system. Avoid leaving the battery deeply discharged for extended periods and maintain an appropriate state of charge during longer storage periods.
Operate the US-EPTOFR44K only on firm and adequately supported surfaces where sufficient traction, steering control, machine support, and load stability can be maintained. Deep mud, loose sand, flooded areas, extremely soft ground, and unstable terrain should be avoided.
Normal wear, wheels and other consumable or wear items, misuse, overloading, accidents, improper operation, improper charging, deep battery discharge, improper storage, inadequate maintenance, unauthorized modifications or repairs, water damage, and damage resulting from operation on unsuitable terrain are not covered.
Contact our equipment team with your product model, order information, and a description of your question or issue. Our team can help identify the appropriate next steps, available parts, or technical support options.
Explore additional equipment selected to complement your material handling operation.
✓ Financing Available
✓ Fast Parts Support
✓ Commercial Equipment Experts
✓ Secure Online Ordering
Reviews
There are no reviews yet
