3300Lbs Full Electric Walkie Stacker with Straddle Legs – 118" Lift for EU Pallets
Full Electric Pallet Stacker
Model: US-ESN-33K
Loading Capacity: 3300Lbs
Lift Height: Up to 118"

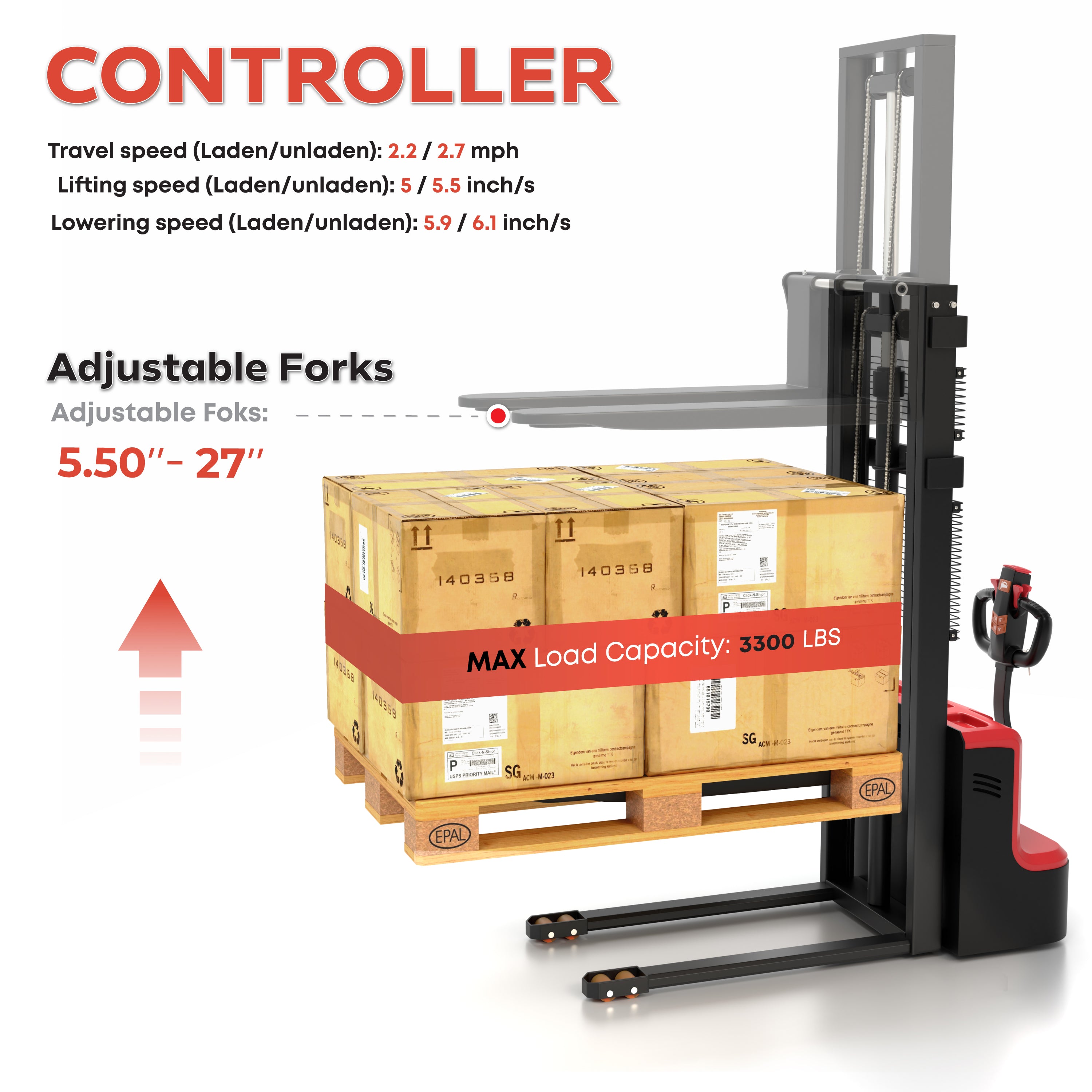

Fork Width: Adjustable from 5.5” to 27”
Straddle Legs: Fixed for stability, designed exclusively for single-deck pallets
Power System: 100% electric operation with a long-lasting, low-maintenance battery and built-in charger

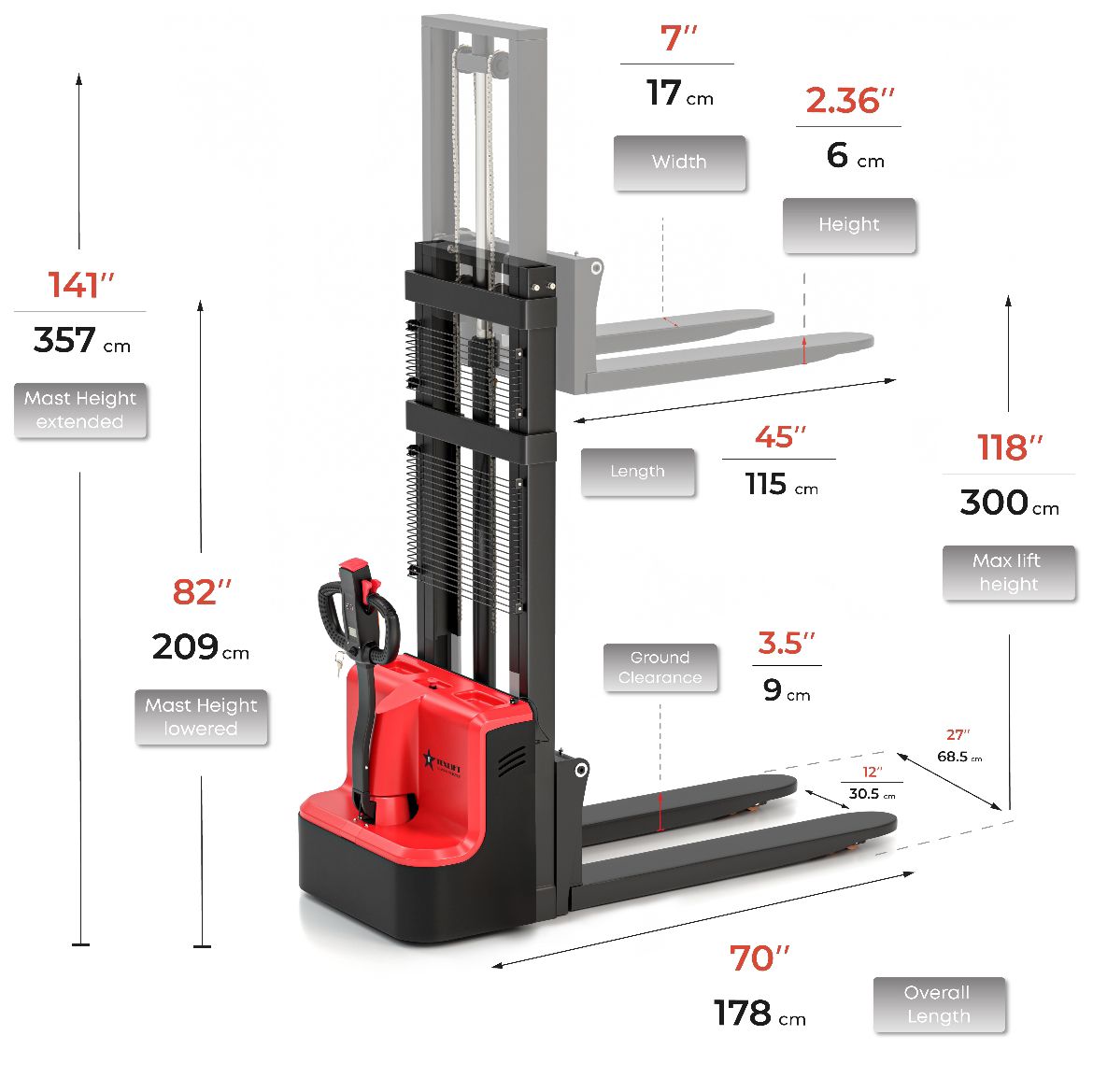

Product Dimensions: 70"L x 33"W x 82"H
Get to know the product
PRODUCT SPECIFICATIONS
The specification chart for the Texlift US-ESN-33K Electric Stacker presents a detailed overview of its key features and capabilities. This chart is designed to offer potential users and decision-makers a clear, concise snapshot of what makes the US-ESN-33K a standout choice for material handling needs.
3300 lbs
3300 lbs load capacity, ideal for heavy-duty tasks, ensuring robust performance in various settings.
20 Inch
Load center distance of 20 inches, optimizing stability during lifting and handling.
Polyurethane Wheels
Polyurethane wheels, offering smooth movement and durability on various surfaces.
49 Inch
49-inch wheelbase, providing excellent stability and maneuverability.
70 Inch
70-inch total vehicle length, making it compact and ideal for confined spaces.
33 Inch
33-inch overall vehicle width, designed for efficient use of narrow spaces in warehouses.
118 Inch
118-inch maximum lifting height, perfect for maximizing vertical storage capacity.
82 Inch
82-inch height when the gantry is lowered, enabling easy access to pallets.
147 Inch
147-inch maximum height during operation, allowing for high stacking in tight environments.
45 Inch
45-inch length of the fork, offering ample support for various pallet sizes.
27 Inch
27-inch max fork width, accommodating large pallets and loads securely.
5.5 Inch
5.50-inch min fork width, offering flexibility for handling different pallet types.
55 Inch
55-inch minimum turning radius, ideal for maneuvering in narrow aisles.
Electromagnetic Brake
Electromagnetic brake for reliable stopping power and safety during operation.
DC Motor
DC motor for the driving system, ensuring efficient movement and energy savings.
0.8 kw
0.8 kW power output from the driving motor, providing ample power for typical warehouse tasks.
DC Motor
DC motor for lifting system, delivering efficient lifting power when needed.
2.2 kw
2.2 kW power output from the lifting motor, ensuring strong and reliable lifting capacity.
Electric (battery)
Electric (battery) drive method, ensuring quiet, clean operation with zero emissions.
48V/32AH
48V/32AH battery type, designed for long-lasting performance and efficiency in demanding environments.
LIFT SMARTER, NOT HARDER
Elevate your operational efficiency and safety standards effortlessly with the Texlift US-ESN-33K Electric Stacker, where innovative design meets unmatched performance.
DURABLE CONSTRUCTION
Built with high-quality materials, the US-ESN-33K withstands the rigors of daily use in challenging industrial environments, ensuring longevity and reliability.
ECO-FRIENDLY OPERATION
Powered by an efficient electric motor, it offers a greener alternative to traditional fuel-powered equipment, reducing emissions and noise in the workplace.

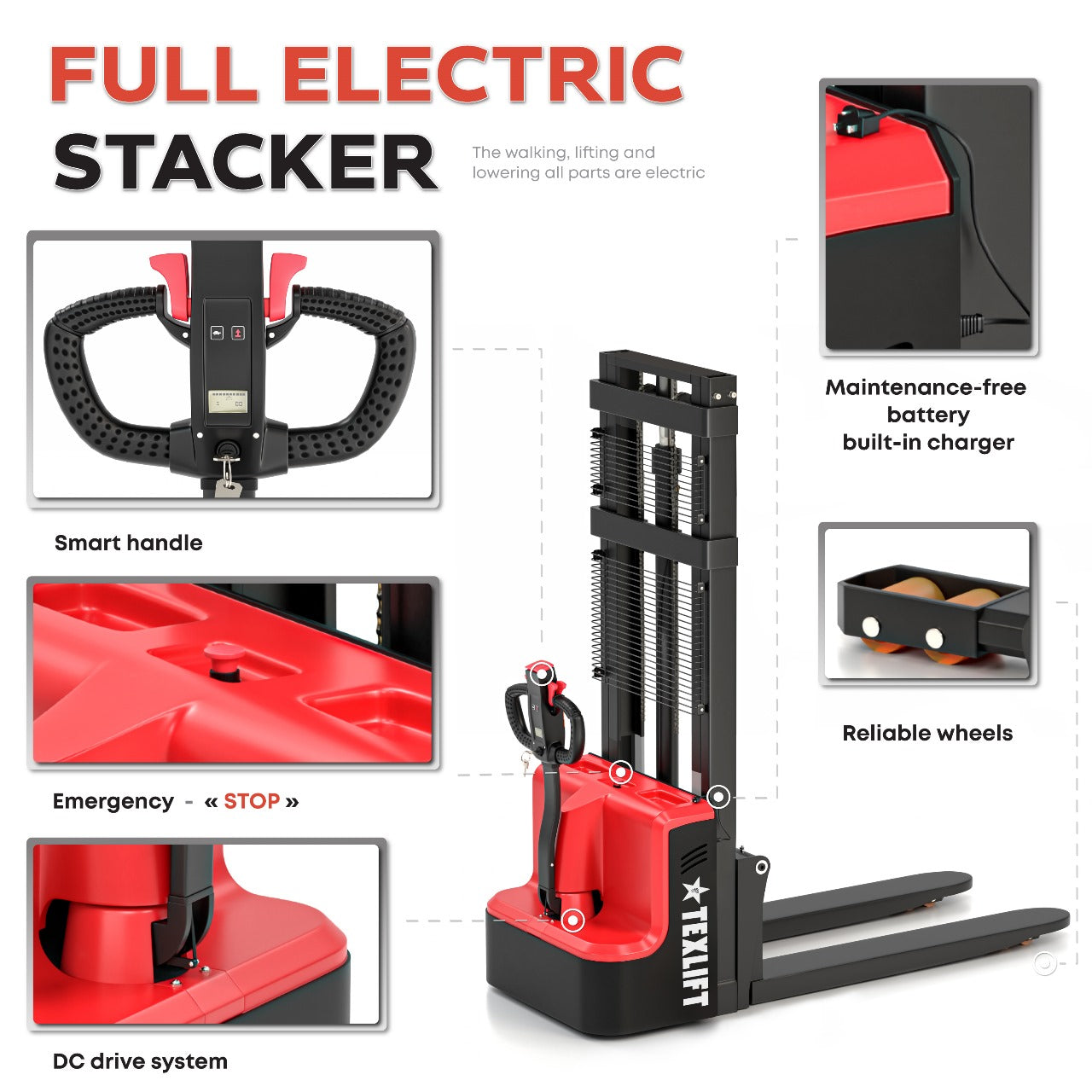

SAFETY-ORIENTED DESIGN
Equipped with safety features including an emergency stop button and automatic braking system, it prioritizes operator safety without compromising on performance.
FAQs
Get acquainted with the ins and outs of your Texlift US-ESN-33K Electric Stacker. Here, we've compiled a list of frequently asked questions to help you optimize usage, maintain peak performance, and ensure safety in every operation.
How can I optimize the battery life of the US-ESN-33K?
Optimize battery life by following a regular charging schedule, avoiding complete discharge, and maintaining the battery at recommended temperatures. Regular maintenance checks are also crucial.
Is the US-ESN-33K suitable for outdoor use?
While primarily designed for indoor use, the US-ESN-33K can be used outdoors in dry, stable conditions. Avoid using it in wet or uneven terrains to prevent damage and ensure safety.
What maintenance checks should be performed regularly?
Regular checks should include inspecting the lifting mechanism, checking the battery and electrical components, and ensuring that all safety features are functioning correctly.
Can the US-ESN-33K handle non-standard pallet sizes?
Yes, the adjustable fork width accommodates various pallet sizes, making it versatile for different load types. However, always ensure the load is within the capacity limits and securely positioned.
